Joyance DroneSpreader 6kg 30kg Fertilizer Agriculture Drone

Name: Joyance DroneSpreader 6kg 30kg Fertilizer Agriculture Drone
Brand: Innovaciones Globales
SKU: 196890788011003_262310959
Price: 14527.14 USD
Availability: InStock

Innovaciones Globales

Color JT16L-404QC

Variantes de producto

Joyance Drone Seed Spreader Granule Using UAV 16kg 30kg UAV Fertilizer Agriculture Drone Spreader Drone for Spreading Seedsng

The Details of sprayer drones

Granular spreader specifications
Voltage range	12~14s (40~60V)
Turntable pwm	1148us~1832us
Servo voltage range	5-8.4v (requires external power supply)
Servo opening pwm	500~2230us
Rated power	60W
Power range	20-180W (idling - maximum flow rate)
Rated current	1A
Current range	0.3-3
Turntable speed	800~1500rpm/min
Sowing range width	5-10m
Diameter of the discharge opening	115mm (matching the diameter of the material box)
Opening area	47 square centimeters (three sectors)
Sowable particle diameter	0.5-5mm
The maximum feeding speed	80 kg/min (take urea as an example)
Weight	2.2kg/2.5 kg
Size	16L: W335mm x L640mm x h300mm 30L: W360mm x L740mm x h340mm

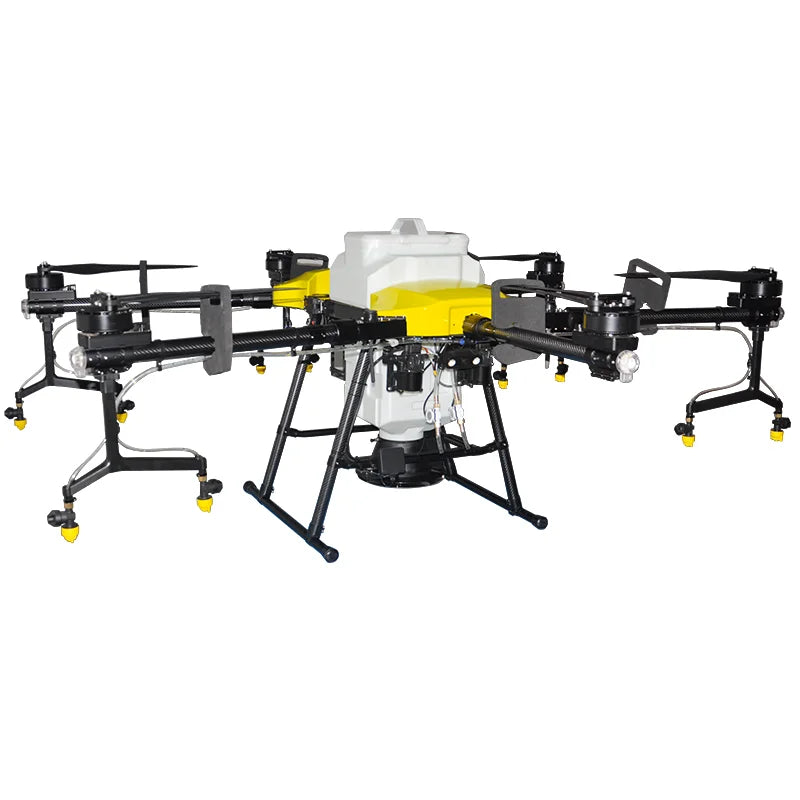

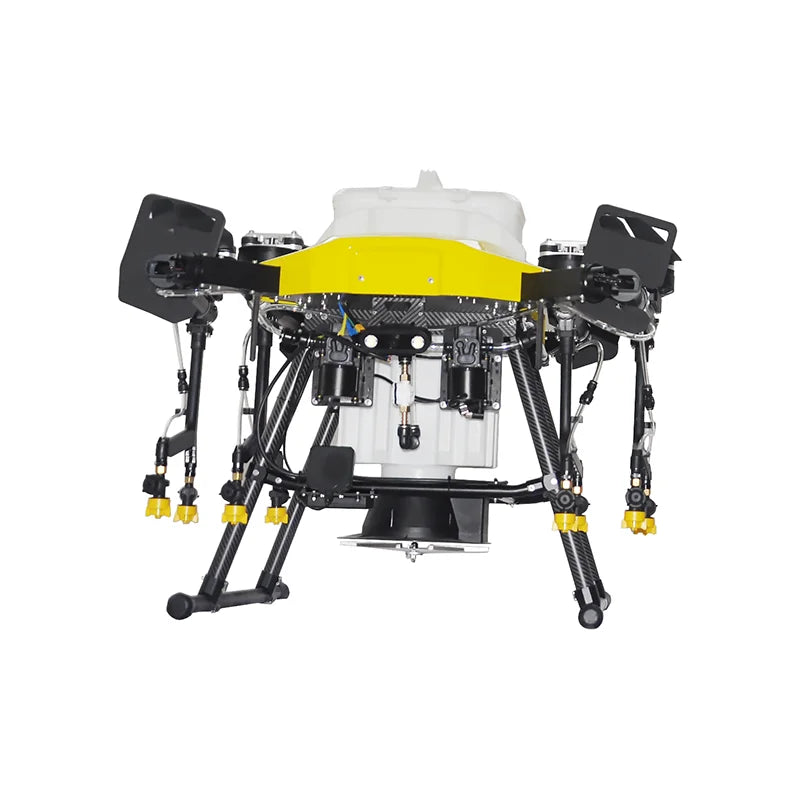

Joyance agriculture sprayer drone with granule spreader

1. Joyance agriculture sprayer drone with granule spreader can spread solid fertilizers granule fertilizer, seeds, sows, feed and so on.

2. Spreading width up to 10m, bin volume 16/30 liters, maximum spreading speed up to 80KG/Min, accurate and efficient spreading.

3. Large flow discharge port, the opening area is 47 square centimeters, and the spreading fertilizer can reach 80kg per minute.

4. The rotation speed is 800~1500RPM, and the broadcast width is adjustable from 5 to 10 meters.

5. Quick bolt locking design, stable installation, and not affected by vibration. The spreader can be quickly disassembled, installed, and inspected, IP67 waterproof and dustproof.

Model			JT16L-404QC	JT30L-606
Pesticide Tank			16L	30L
Net Weight			18kg	27.5kg
Take-off Weight			40kg	67kg
Flying Time			10~15min	10~15min
Machine Size	Spread Size	W1.40m x L1.35m x H0.7m	W2.2m x L1.85m x H0.8m
Machine Size		Folded Size	W0.85m x L0.85m x H0.7m	W1.25m x L0.9m x H0.8m
Power System	Motor	Brushless	Brushless
		Propeller	Carbon Fiber	Carbon Fiber
		Propeller	Rapid Throttle Response	Rapid Throttle Response
Flight Control			K++ V2	K++ V2
Remote Controller			Joyance Datalink H12 RC	Joyance Datalink H12 RC
Battery / Quantity			14S 20000mAh / 1pc	14S 28000mAh / 1pc
Adapter + Charger			Dual-Channel Charger 3000W	Dual-Channel Charger 3000W
Aluminum box size / weight		Packing Case	989275cm / 65kg	15410994cm / 100kg
Toolkit			Maintenance/Repair Tools	Maintenance/Repair Tools
