Joyance 15L sprayer drones para fumigacion
Joyance 15L sprayer drones para fumigacion
Innovaciones Globales
Item
|
SPRAYER5
|
SPRAYER10
|
SPRAYER15
|
Material
|
Carbon fiber
|
Carbon fiber
|
Carbon fiber
|
Spread size
|
W1.2mxL1.2mxH0.3m
|
W1.8mxL1.3mxH0.4m
|
W2.65mxL1.55mxH0.35m
|
Folded size
|
2.65mx1.55mx0.35m
|
0.7mx0.5mx0.55m
|
W0.95mxL0.7mxH0.55m
|
No. of axles
|
6
|
6
|
6
|
No. of propellers
|
6
|
8
|
8
|
Rated load
|
5kg
|
10kg
|
15kg
|
Machine weight
|
7.5kg
|
11kg
|
15kg
|
Max. take-off weight
|
15kg
|
28kg
|
40kg
|
Spray flight time
|
10-15min
|
10-15min
|
10-15min
|
Flight radius
|
1000m
|
1000m
|
1000m
|
Flight height
|
0-200m
|
0-200m
|
0-200m
|
Flight speed
|
0-12m/s
|
0-12m/s
|
0-12m/s
|
Spray speed
|
0-8m/s
|
0-8m/s
|
0-8m/s
|
Spray flow
|
0.2-2L/min
|
0.2-2L/min
|
0.2-2L/min
|
Spray width
|
>3M
|
>4M
|
>5M
|
No. of nozzles
|
4
|
4
|
6
|
Temperature range
|
-10~70℃
|
-10~70℃
|
-10~70℃
|
Motor
|
6S brushless heavy duty motor
|
12S brushless heavy duty motor
|
12S brushless heavy duty motor
|
Controller
|
9 channels
|
Futuba
|
Futuba
|
No. of battery
|
1pc
|
2pcs
|
2pcs
|

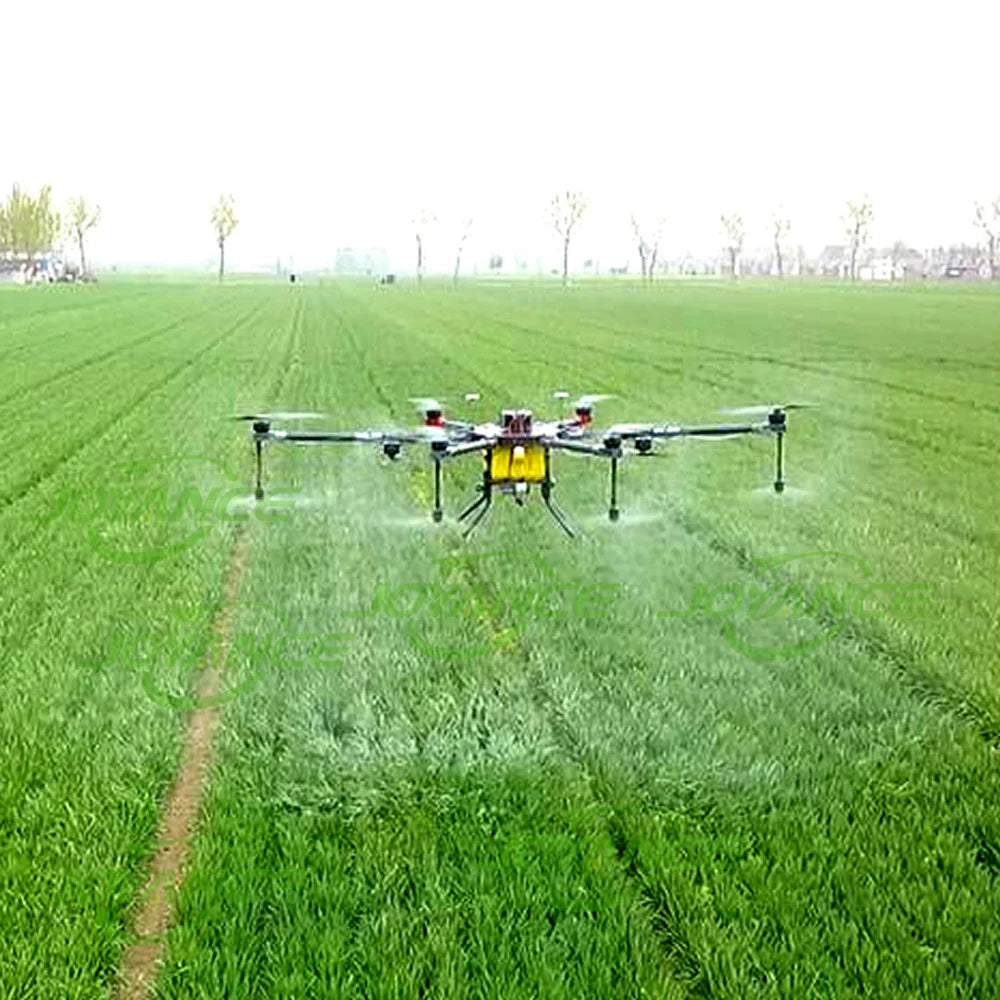

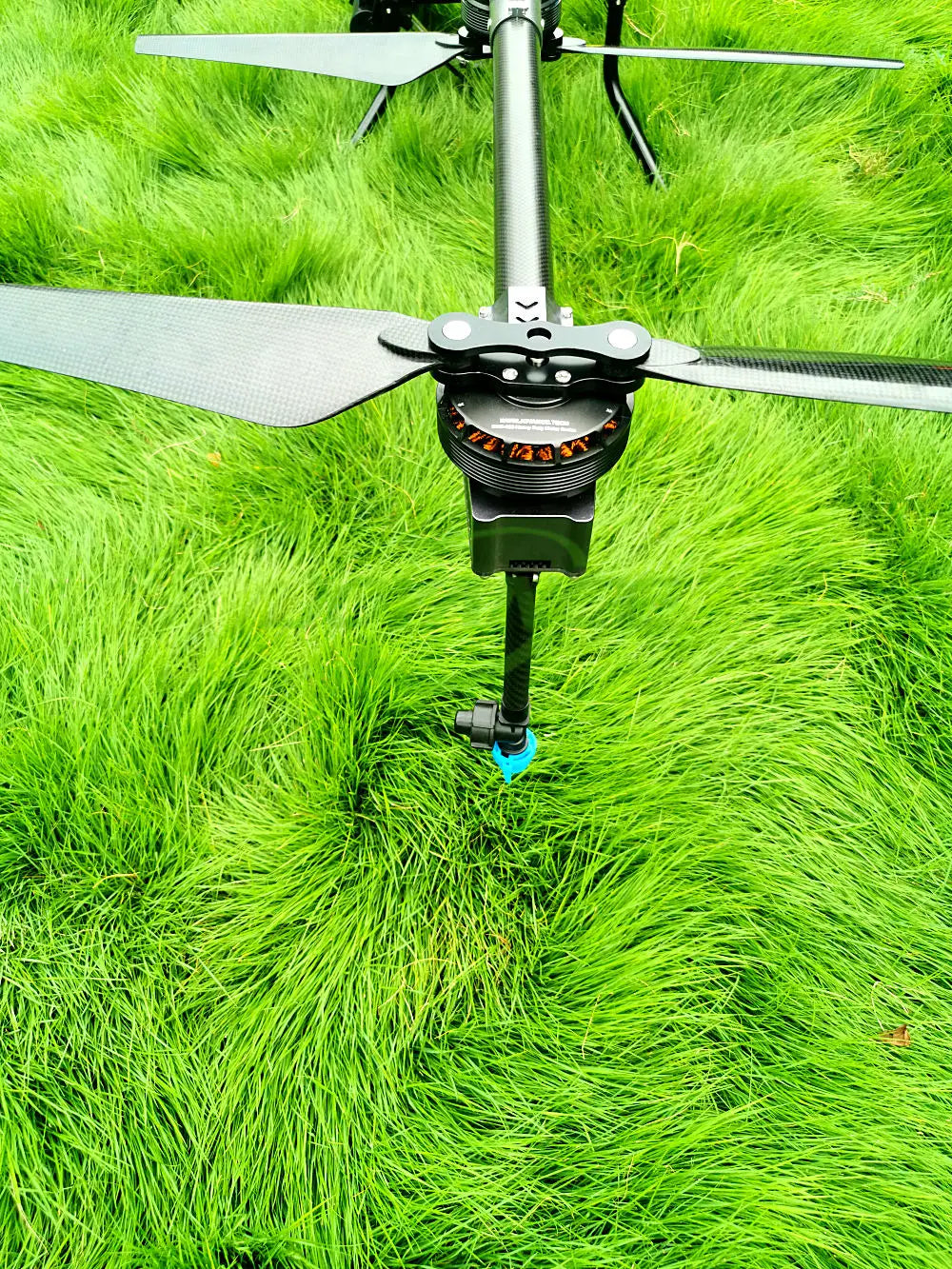

Every nozzle of Joyance drones is under propeller, most effective.
every nozzle of Joyance drones is under the propeller, so the chemical fog can be directly sprayed to all levels of the crop. This is possible due to the strong air flow generated by the propellers, so every nozzle is highly effective.

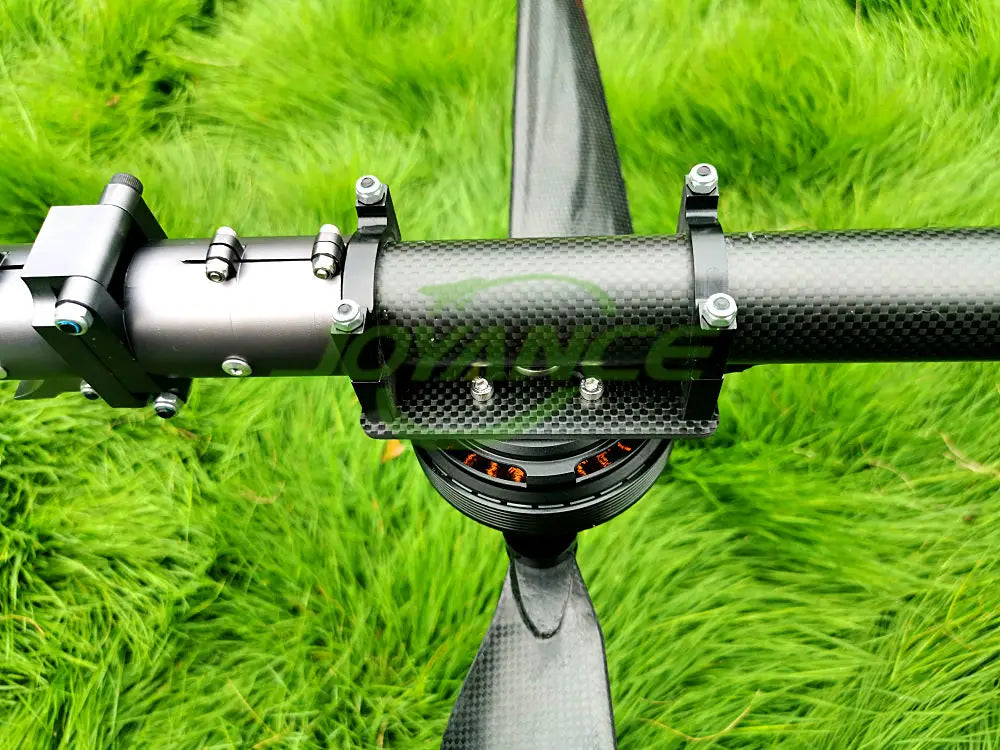

Motors: Durable and reliable motors specially designed for agriculture drones, ensure work continuously for a long time.
Cerntrifugal Fan
Heavy Duty Motor Series
Special synchronous balance charger for agriculture drone
Our 8-way synchronous balance charger with built-in AC power supply, it is quite useful, and easy to carry.
There is 8 units charging socket at total, can finish charging 2 pcs 16000mAh batteries in 30 minutes.

Famous Brand Battery.
Tattu brand, the best battery in China
Anti-spark AS150 plug
6s, 16000mAh lipo battery
Available in many countries


Waterproof
Waterproof and sealed, keep away from water and pesticide.
Waterproof LED indicator
Anti-spark AS150 battery plug
Stainless steel screws, anti-corrosion
Easy to transport
Carbon fiber frame, umbrella foldable design, one car can carry 3 drones, so it's convenient to transport.



Autonomous Flight by phone/tablet
Intelligent Spraying

FPV
First person of view. Display live video, help operator see obstacles in front
Automatic Intelligent Flight with Waypoints.
1. select 1 2 3 4 four points
2. Define the flying height, spraying width, flying speed and delay time, the Ground Station Software will draw all the lines automatically.
3. Save this as one project, so that you can use it again when you need to spray this field once more.


Semi-automatic Flight.
1. Push the stick left one time, the drone will move left one row-5m spray width automatically, with same flight height and speed.
2. Push the stick right one time, the drone will move right one row-5m spray width automatically, with same flight height and speed.
