dron de fumigacion de 15L

dron de fumigacion de 15L

Innovaciones Globales

Color
Model Number

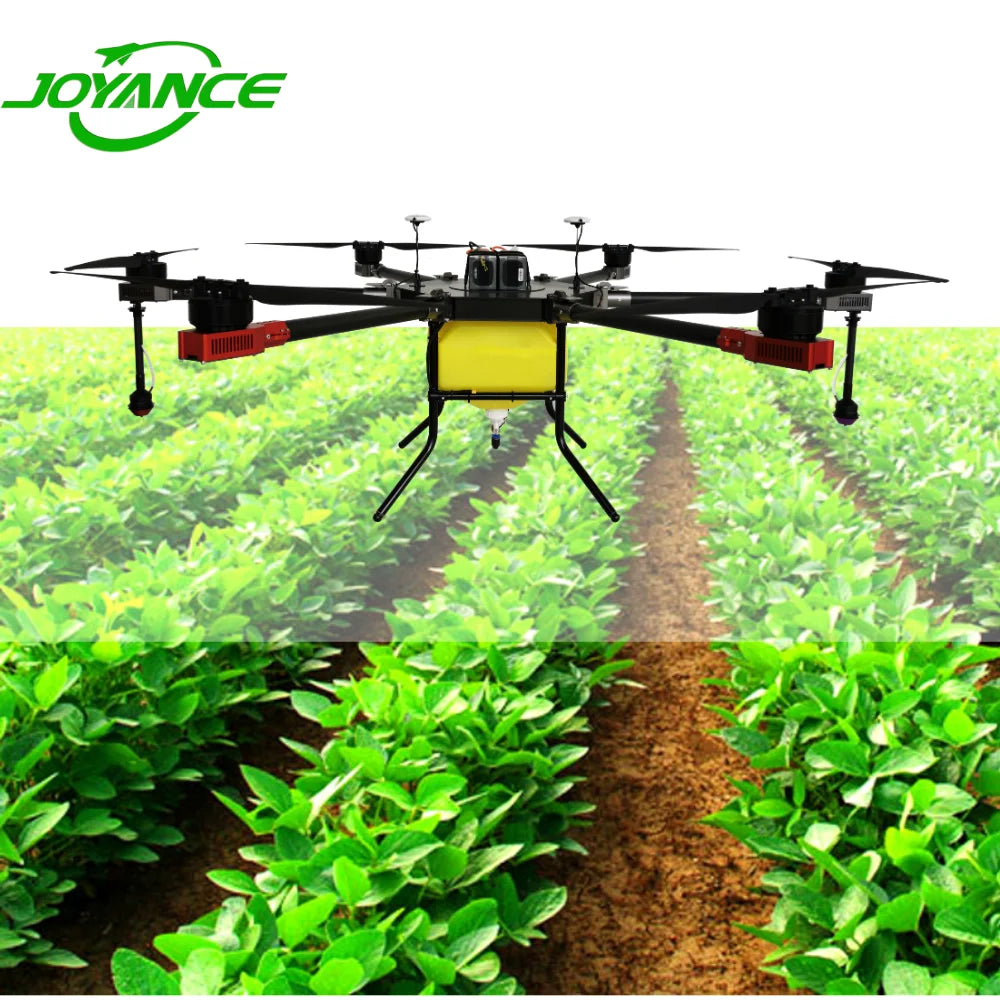

dron de fumigacion de 15L/dron para fumigar with smart agriculture sensors/rc drone sprayer made in China
Sprayer drone Description

Type: Agri sprayer drone

Model: JT15L-606
Tank capacity: 15L/ 15kgs
Spray width: 6 - 7 meters
Coverage: 7-8 hectares/hour (1ha=2.5acres)
Highlights: Middle size with advanced configuration

Application:
sowing seeds → solid fertilizer scattering → herbicide/insecticide/bactericide/pesticide spraying → foliar fertilizer spraying

Basic Function of agricultural sprayer drone

Remote controlled and fully automatically operation in APP - JOYANCE Agriculture UAV Drone Crop Sprayer 1. One key take off and landing.(easy to operate) 2. Autonomous flying with APP. 3. Avoid re-spraying seedlings or missing spray with record and do break-point continue-spraying 4. Intelligent flow adjust control, intelligent spraying 5. APP maps, plans operating route and route will be saved automatically for next operation 6. Fail-safe self protection 7. Cloud service and team management 8. Dosage Monitor 9. Low Voltage & Volume Warning, drone back to site automatically 10. FPV camera with light transferring real image in front of drone 11. Terrain following radar(optional) 12. Obstacle avoidance radar(optional) 13. Granule spreader to scatter seeds fertilizer(optional)
Technical parameter
JT10L-606
JT15L-606
JT15L-608 Pro
JT20L-606
1
Pesticide load
10 liters
15 Liters
15 liters
20 liters
2
Self weight
10.5 kg
13.5 kg
20 kg
18.5 kg
3
Take-off weight
23 kg
31 kg
39 kg
44 kg
4
Fly time/flight
10~15 min
10~15 min
10~15 min
10~15 min
5
Spraying efficiency
5~6hectares/hour
7~8 hectares/hour
8~10 hectares/hour
9~11hectares/hour
6
Spray width
4~6 m
6~7 m
8~10 m
7~8 m
7
Spray speed
0~8 m/s
0~8 m/s
0~10 m/s
0~10 m/s
8
Nozzles
2 centrifugal nozzles
2 centrifugal nozzles
4 centrifugal nozzles
4 centrifugal nozzles
9
Battery
2 pcs
6S 17000 mAh
2 pcs
6S 17000 mAh
2 pcs
6S 23000 mAh
2 pcs
6S 23000 mAh
10
Flying radius
1000 m
1000 m
1000 m
1000 m
11
Spray flow
1~1.5 L/min
2~2.5 L/min
2.5~3 L/min
2.5~ 3 L/min
12
Flying height
0~30 m
0~30 m
0~30 m
0~30 m
13
Work temperature
–10~70 ℃
–10~70 ℃
–10~70 ℃
–10~70 ℃
14
Work humidity conditions
0~90%
0~90%
0~90%
0~90%
15
Wind resistance
10 m/s
10 m/s
10 m/s
10 m/s
16
Spread size (m)
1.3 * 1.3 * 0.45 m
1.8 *1.8 * 0.48 m
2.7 *1.55 * 0.5 m
1.95 *1.95 * 0.57 m
17
Folded size (m)
0.6 * 0.6 * 0.51 m
0.7 * 0.7 * 0.63 m
0.85 * 0.75 *0.7 m
0.7 * 0.7 *0.8 m
18
Aluminum box size/weight
73*67*65 cm /
50 kgs
75*75*81 cm / 70kgs
81*81*86 cm /
80 kgs
75*85*95 cm /
80 kgs

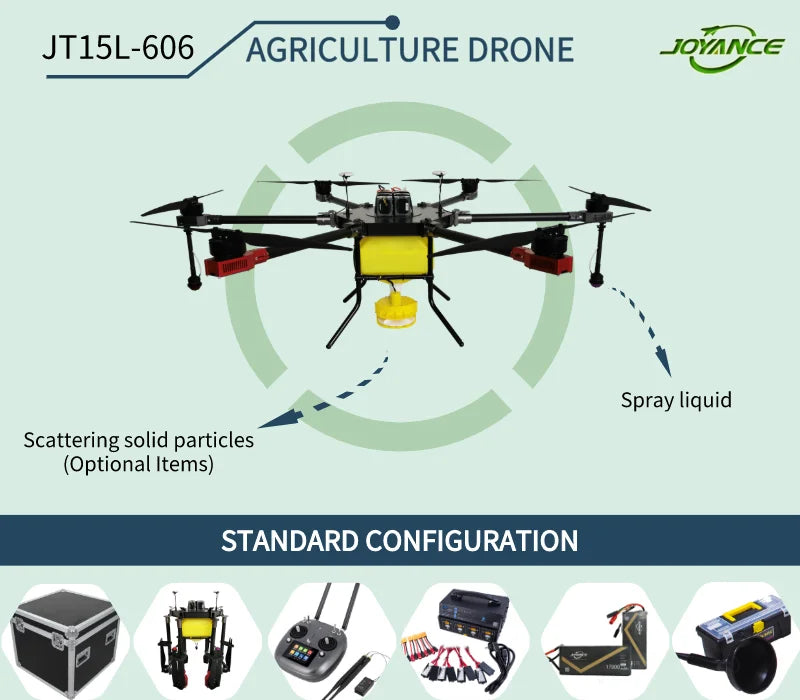

Standard price include:

-one completed sprayer drone.
-one remote controller
-2pcs 17000mAh Batteries
-1set 8-channel charger
-Maintenance/repair toolkit
-Aluminum transport case
Ready to fly.

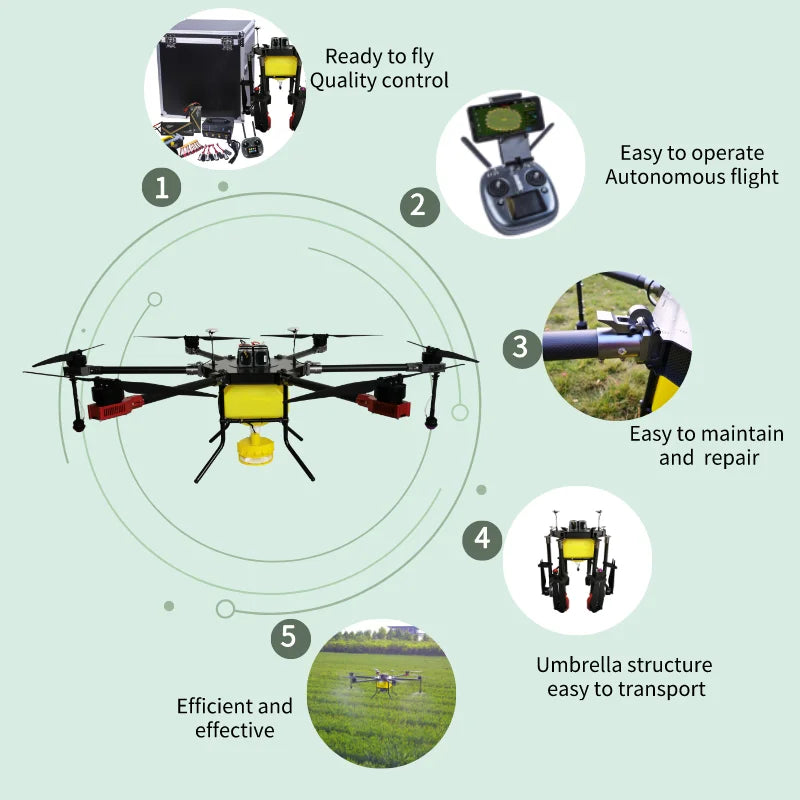

Sprayer drone Details Images

① Heavy-duty brushless motor

FOC power system, more powerful, support more stable flight, waterproof;
working hours ≥2,000 hours with long service life

② Strongest drone frame

100% carbon fiber, lighter and stronger, with bigger size central plate make the drone fly more stable.

③ Aluminum folding jouint

Foldable, fasten and strong to bear heavy work,  more stable flight and a longer life time.

④ Propellers
Foldable carbon fiber propellers

⑤ Water pump

Pumping water

⑥ Li-po batteries

6S 17,000/23,000mAh Li-po batteries
≥300 cycles service life

⑦ Bigger size central plate

Made of thicker carbon fiber;
Light, strong, highest quality

⑧ Remote controller

Simple pratical RC design to be easier operating
dustproof and waterproof

⑨ Agri assistant App

It can be installed on the phone or tablet to do automous flight.

Certrifugal nozzles-- one of advantages:

Have a better atomization effect and penetration.
50-200 um droplet diameter
Spray degree: 170
Not easy to block.
Suitable for spraying in orchards, vegetables, rice,corn, etc, all crops and fruit trees.
