Voltage range: 12-14V,
Max flow: 2 * 5L/m
Max flow: 2 * 5L/m
Waterproof: IP 68 After finishing spraying, it can be washed with water directly to reduce pesticide corrosion.
Precio habitual
$11,377.28 USD
Precio habitual
$0.00 USD
Precio de oferta
$11,377.28 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Dron de Agricola Drone 32liter New Farm Drones Agriculture Spray
Dron de Agricola Drone 32liter New Farm Drones Agriculture Spray
Innovaciones Globales

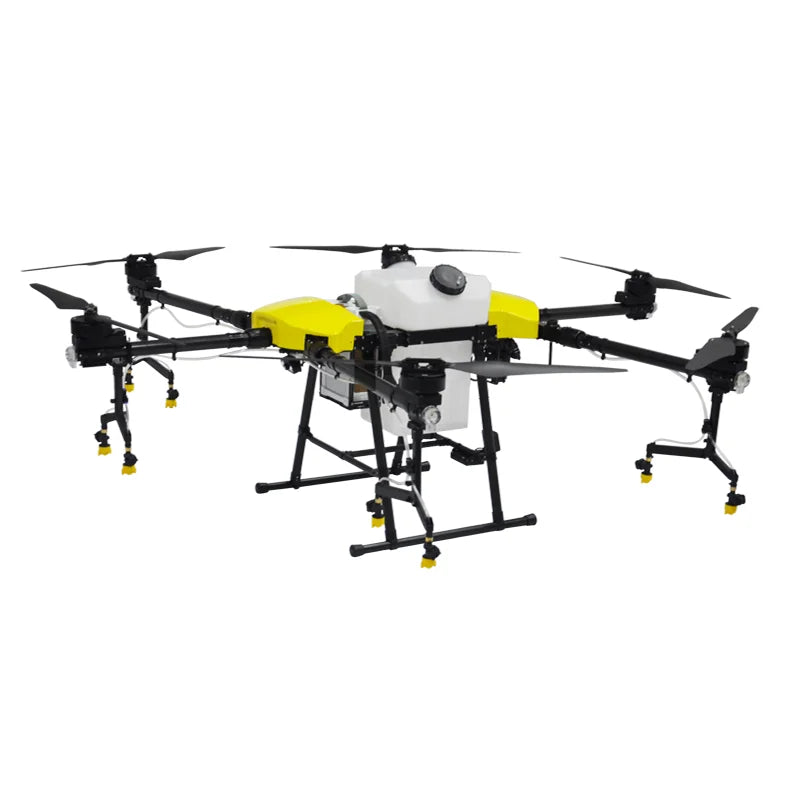

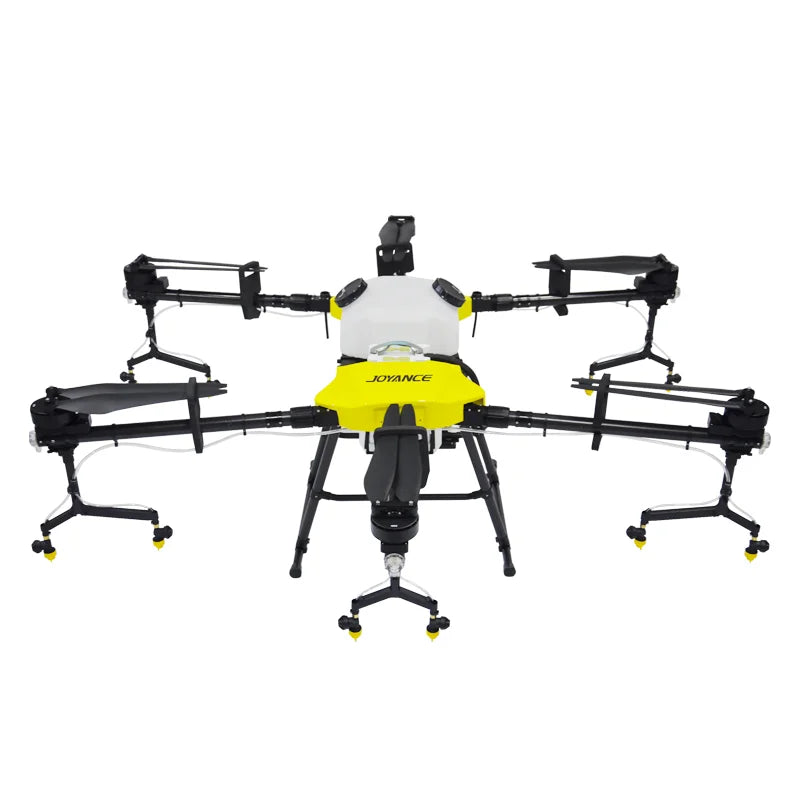

Dron de gasolina Agricola Drone 32liter New Farm Drones Agriculture Spray 32l Drone for Crop Spraying Sprayer
Details of agriculture drone
|
Capacity:
|
32 liters
|
|
Spraying width:
|
≥ 10m
|
|
Spraying efficiency:
|
≥ 14~16 hectares/hour
|
|
Battery:
|
2pc 16s 16000mAh Li-po battery
|
|
Nozzle:
|
4pcs centrifugal nozzles
|
|
Fold size:
|
1.3 * 0.7 * 0.63 m
|
|
Spread size:
|
2.4 * 1.18* 0.63 m
|
|
Charge time
|
35 minutes full charge 2 batteries
|
|
Fly Time
|
10-15 minutes
|
|
1. How long can the battery fly?
|
|
2pcs batteries can fly for 10-15 minutes.
|
|
2. How long does it take to fully charge the battery?
|
|
About 35 minutes to full charge 2 batteries
|
|
3. How many batteries are needed for a whole day's continuous spraying?
|
|
For continuous spraying, we recommend 12 batteries and 2 chargers
|
|
4. Do you provide training?
|
|
Yes, we provide 3 days' free training online or in China
|
|
Model
|
JT 10L-404 QC
|
JT 16L-404 QC
|
JT 20L-606
|
JT 32L-606 QC
|
|||
|
Pesticide tank
|
10 liters
|
16 Liters
|
20 liters
|
32 liters
|
|||
|
Self weight
|
10.5 kg
|
13.5 kg
|
18.5 kg
|
27.5 kg
|
|||
|
Take-off weight
|
23 kg
|
31 kg
|
44 kg
|
67 kg
|
|||
|
Fly time
|
10~15 min
|
10~15 min
|
10~15 min
|
10~15 min
|
|||
|
Spraying efficiency
|
5~6 ha/hour
|
7~8 ha/hour
|
9~11 ha/hour
|
12~15 ha/hour
|
|||
|
Spray width
|
4~6 m
|
6~7 m
|
7~8 m
|
8~10 m
|
|||
|
Spray speed
|
0~8 m/s
|
0~8 m/s
|
0~8 m/s
|
0~10 m/s
|
|||
|
Nozzle
|
4 high pressure nozzles
|
8 high pressure nozzles
|
4 centrifugal nozzles
|
4 centrifugal nozzles
|
|||
|
Battery
|
1 pc 14S 10000 mAh
|
1 pc 14S 20000 mAh
|
2 pcs * 6S 23000 mAh
|
2 pcs 16S 16000 mAh
|
|||
|
Spray flow
|
1~1.5 L/min
|
2~2.5 L/min
|
2.5~ 3 L/min
|
3.5~ 4 L/min
|
|||
|
Flying radius
|
1500 m
|
||||||
|
Flying height
|
0~30 m
|
||||||
|
Wind resistance
|
10 m/s
|
||||||
|
Spread size (m)
|
1.3 * 1.3 * 0.45 m
|
1.8 *1.8 * 0.48 m
|
1.95 *1.95 * 0.57 m
|
2.4*1.18*0.63 m
|
|||
|
Folded size (m)
|
0.6 * 0.6 * 0.51 m
|
0.7 * 0.7 * 0.63 m
|
0.7 * 0.7 *0.8 m
|
1.3*0.7*0.63 m
|
|||
|
Aluminum box size/weight
|
73*67*65 cm/50 kgs
|
75*75*81 cm / 70kgs
|
75*85*95 cm / 90 kgs
|
154*109*94cm/110 kgs
|
|||

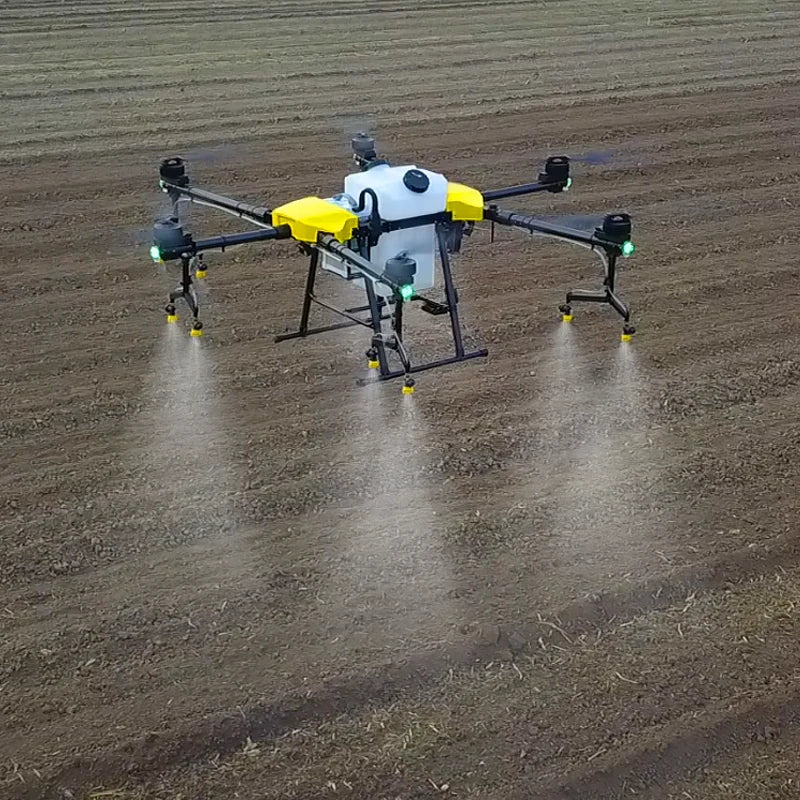

Application
dron de gasolina agricola drone 25liter 2020 drone agriculture spray 25l drone for crop spraying
JOYANCE drones have been widely using for crop protection, mosquito control, and public disinfection.
Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, banana, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 100~120 hectares field per 8-hour day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
Main Parts
Brushless Motor
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Centrifugal Nozzle
Droplet diameter of 50~200um
Better atomization effect
Better penetration
Spray more evenly
Not easy to be blocked
Aviation Aluminum Folding Joint
Firm and durable, not deformed.
Carbon fiber drone arm with diameter 40mm, thickness 2.0mm
Suitable for heavy duty work
Long service life
Long service life
Carbon Fiber Propeller

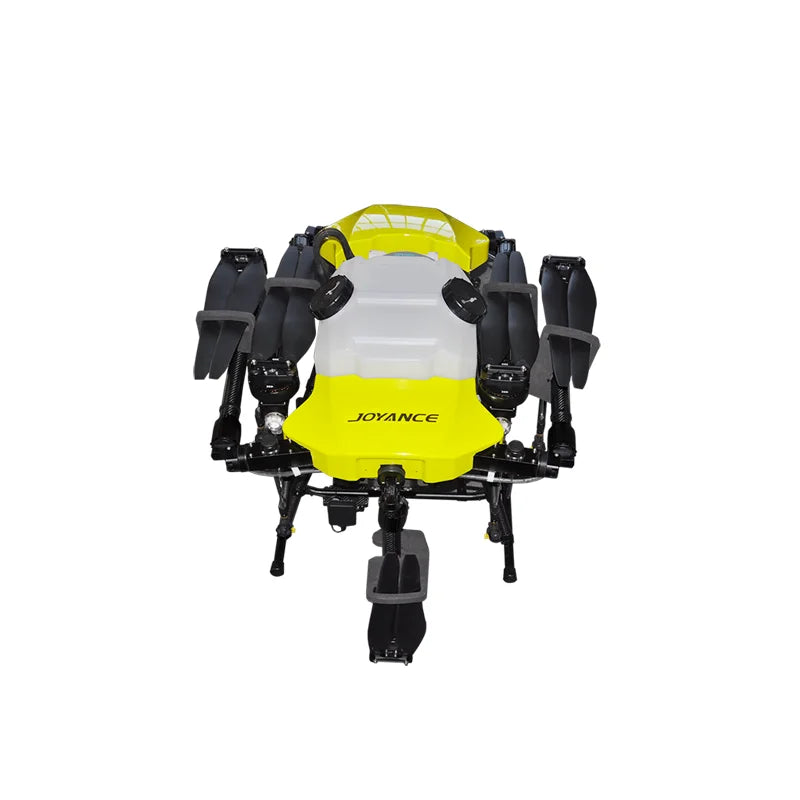

Foldable during transport
FOC integrated power system
Nozzles under propeller
Remote Controller
Integrated with Radio telemetry and Image transmitter, FPV camera, 5 inch screen. 1.5km control distance
Aviation Aluminum Alloy Frame
The whole frame is made of aviation aluminum alloy material, strong and durable
Two brushless water pumps
Brushless water pumps can be used for more than 500 hours, which are 3-5 times longer than ordinary water pumps , this is will reduce maintenance cost.
After-sales & Services
● Warranty: 3 years for drone frame;
● Ready to fly and quality control:100% tested before delivery.
● Lifelong after-sales service, offer operation manual and videos, timely online technical support is available.
● Free training in our factory, including operation and maintenance, takes 2-3 days.
● Lifelong after-sales service, offer operation manual and videos, timely online technical support is available.
● Free training in our factory, including operation and maintenance, takes 2-3 days.
Product Feature
1. Autonomous Flight:
Mark waypoints on Google map, program flight routes in the App, the drone will fly automatically according to the routes. The flight routes can be saved in the account for next time use.
2. Cloud Service: the spraying datas can be uploaded to cloud service platform with internet connection, and the administrator can monitor all the drones registered in this system in real time.
3. Obstacles Detection: the Millimeter wave radar on the front of drone can detect if there are any obstacles in front and stop drone flying forward to avoid any possible crash.
4. Intelligent Spraying: the spray flow can be automatically adjusted by chemical volume per hectare and fly speed.
5. Break-point Record: When the chemical runs out the drone will record break-point and continue spraying after refill.
6. Terrain Following: the Millimeter wave radar can detect the distance between drone and ground/crop surface and automatically adjust flight height to keep constant distance between drone and crops surface to get even spraying.
