dron agricola joyance
dron agricola joyance
Innovaciones Globales

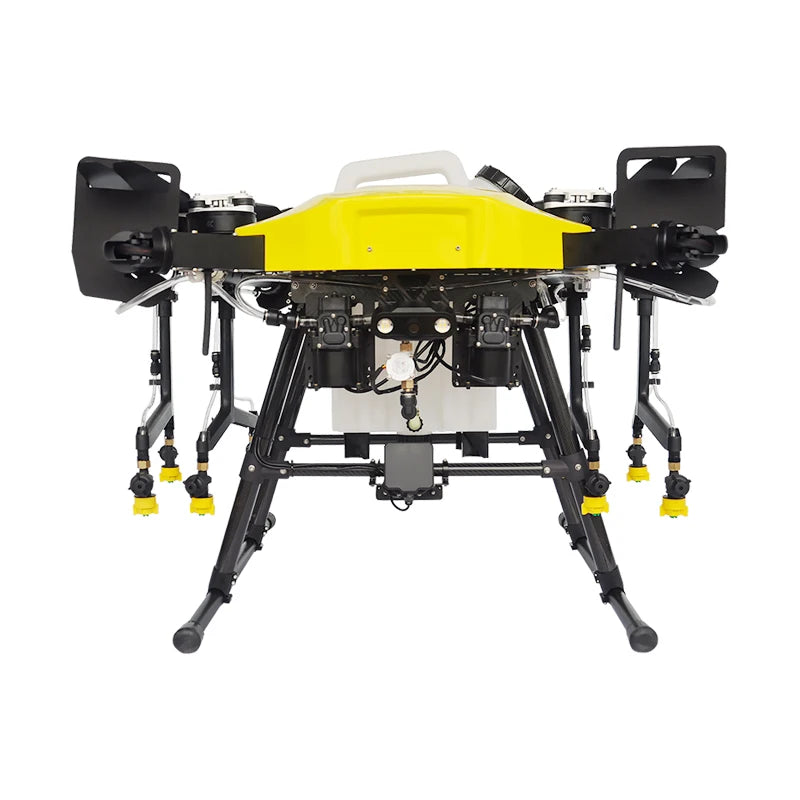

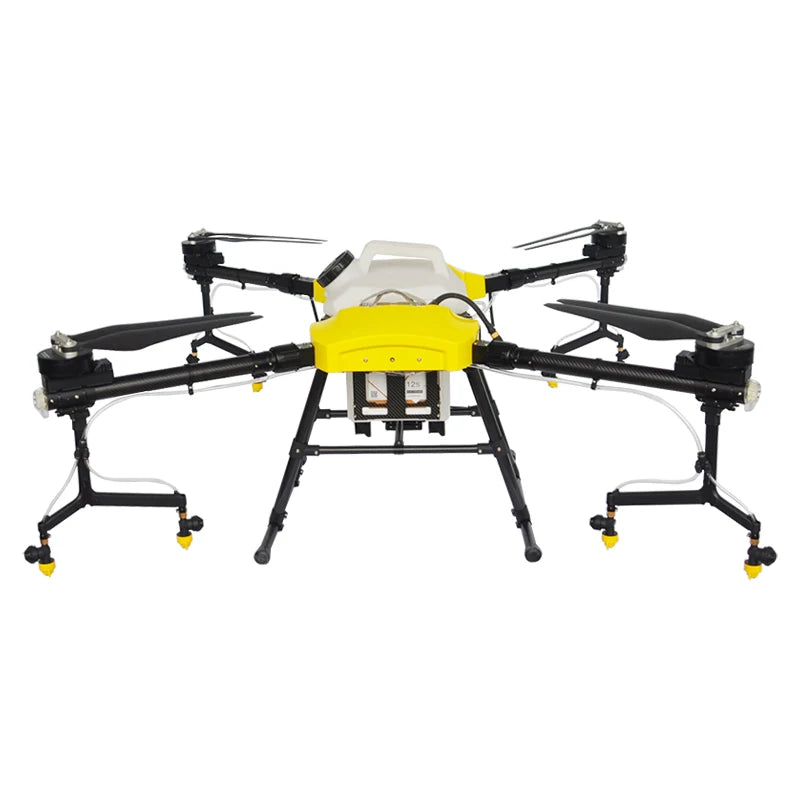

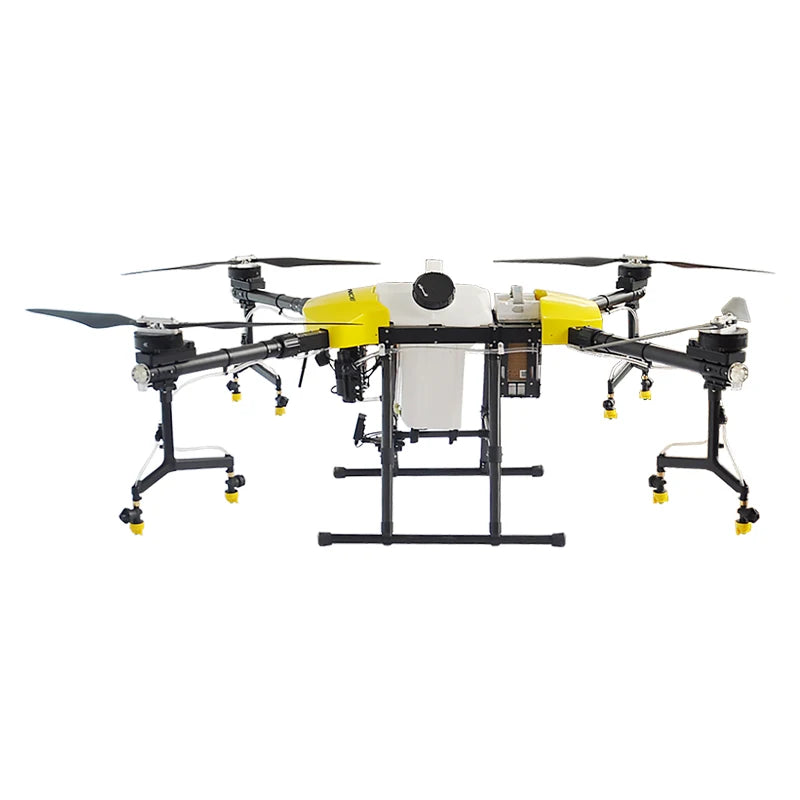

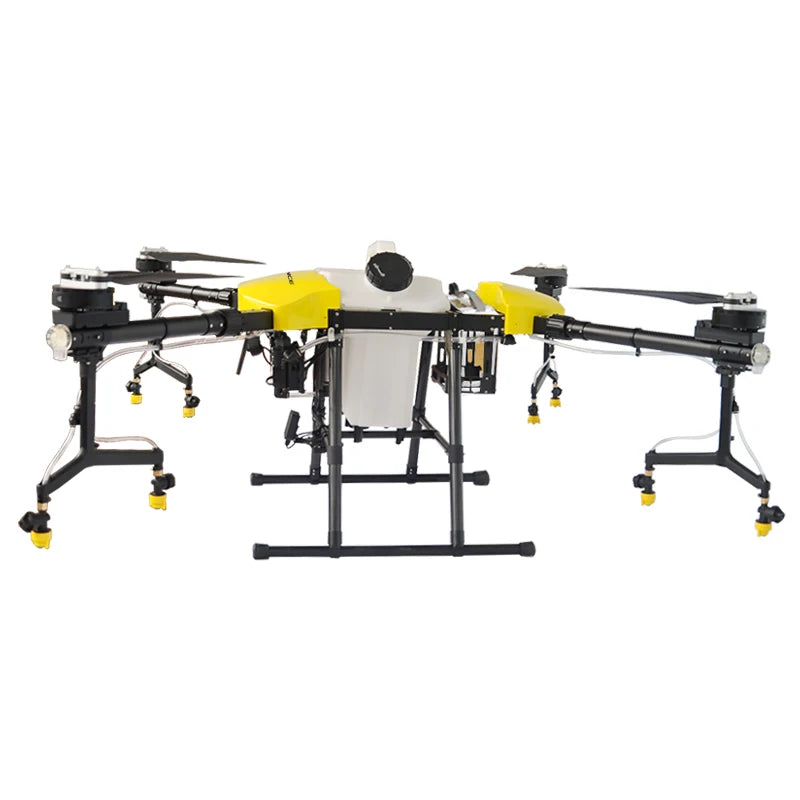

30 liters 30kg Agriculture Night Vision Helicopter Drone Mosquitoes Uav Sprayer with Max Capacity For Mango Garden
The Details of sprayer drones
|
Model
|
|
JT10L-404QC
|
JT16L-404QC
|
JT30L-606
|
|
|
Pesticide Tank
|
|
10L
|
16L
|
30L
|
|
|
Net Weight
|
|
13kg
|
18kg
|
27.5kg
|
|
|
Take-off Weight
|
|
27kg
|
40kg
|
67KG
|
|
|
Flying Time
|
|
10~15min
|
10~15min
|
10~15min
|
|
|
Flying Radius
|
|
0~1000m
|
0~1000m
|
0~1000m
|
|
|
Flying Height
|
|
0~30m
|
0~30m
|
0~30m
|
|
|
Flying Speed
|
|
0~12m/s
|
0~12m/s
|
0~12m/s
|
|
|
Work Temperature
|
|
-10~70°C
|
-10~70°C
|
-10~70°C
|
|
|
Work Humidity
|
|
0~90%
|
0~90%
|
0~90%
|
|
|
Spray Speed
|
|
0~8m/s
|
0~8m/s
|
0~8m/s
|
|
|
Spray Width/Nozzle No.
|
|
>3.5~5.5m / 4 Nozzles
|
>4~6m / 8 Nozzles
|
>8~10m / 10 Nozzles
|
|
|
Spray Flow
|
|
1~1.5L/min
|
2~2.5L/min
|
3.5~4L/min
|
|
|
Spray Efficiency
|
|
5~7Ha/Hr
|
8~10Ha/Hr
|
12~15Ha/Hr
|
|
|
Flying Downward Airflow
|
|
4~15m/s
|
4~15m/s
|
4~15m/s
|
|
|
Wind Resistance
|
|
10m/s
|
10m/s
|
10m/s
|
|
|
|
Spread Size
|
W1.15m x L1.15m x H0.6m
|
W1.5m x L1.5m x H0.7m
|
W2.1m x L1.85m x H0.8m
|
|
|
Folded Size
|
W0.85m x L0.65m x H0.6m
|
W0.85m x L0.85m x H0.7m
|
W1.2m x L0.9m x H0.8m
|
||
|
|
Motor
|
Brushless
|
Brushless
|
Brushless
|
|
|
Propeller
|
Carbon Fiber
|
Carbon Fiber
|
Carbon Fiber
|
||
|
ESC
|
Rapid Throttle Response
|
Rapid Throttle Response
|
Rapid Throttle Response
|
||
|
Flight Control
|
|
K++ V2
|
K++ V2
|
K++ V2
|
|
|
Remote Controller
|
|
Joyance Datalink H12 RC
|
Joyance Datalink H12 RC
|
Joyance Datalink H12 RC
|
|
|
Battery / Quantity
|
|
14S 10000mAh / 1pc
|
14S 20000mAh / 1pc
|
14S 28000mAh / 1pc
|
|
|
Adapter + Charger
|
|
Dual-Channel Charger 2400W
|
Dual-Channel Charger 3000W
|
Dual-Channel Charger 3000W
|
|
|
Aluminum box size / weight
|
|
8*92*68cm / 50kg
|
98*92*75cm / 65kg
|
154*109*94cm / 100kg
|
|
|
Toolkit
|
|
Maintenance/Repair Tools
|
Maintenance/Repair Tools
|
Maintenance/Repair Tools
|
|
Advantages of agriculture sprayer drones
1. Materials of drone frame: Aluminum alloy drone center board frame and carbon fiber tubes, light weight, more durable.
3. Super Power system : - 6 pcs X9 Plus FOC power system, with 45mm carbon fiber tubes. Motors have enough redundancy to support more than 30L.
4. Smart batteries and smart charger :
-- 1 pc 14s 28000 mAh smart batteries: use 18650 cells, life span is about 600 cycles, longer than normal lipo batteries. They have inner intelligent voltage manage system, to show remaining voltage and cycles use in app. Waterproof IP 53. They have over current protection circuit and temperature shutdown circuit. -- 1 dual-channel 3000W 6055P smart charger: can quick charge and protect batteries effectively.
5. Two brushless water pumps for 30L drone sprayer
Brushless water pumps can be used for more than 500 hours, which are 3-5 times longer than ordinary water pumps , this is will reduce maintenance cost. Voltage range: 12-14V Max flow: 2 * 5L/min Waterproof: IP 68 After finishing spraying, it can be washed with water directly to reduce pesticide corrosion.
