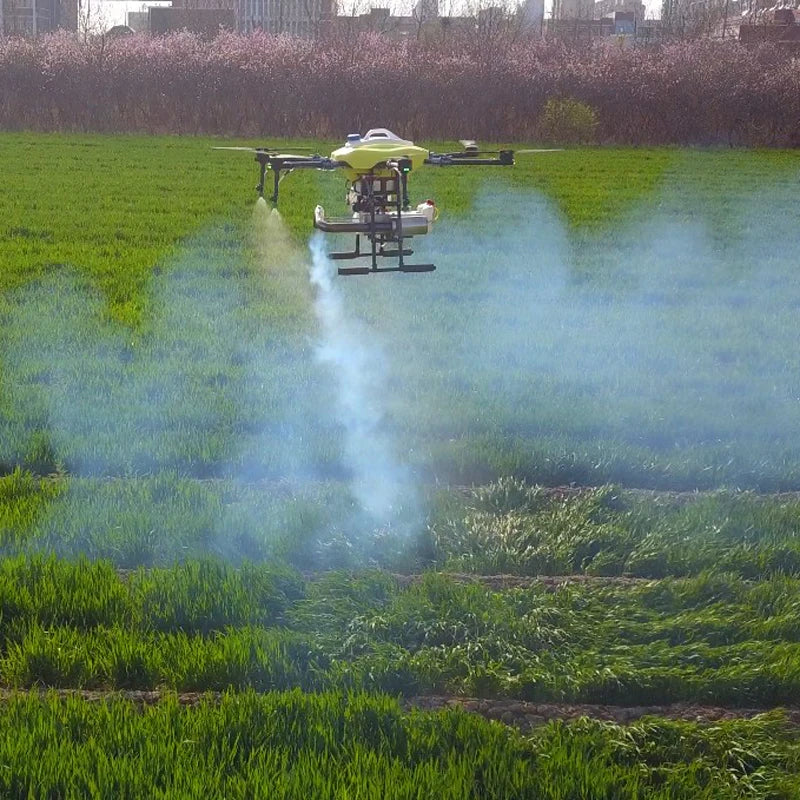

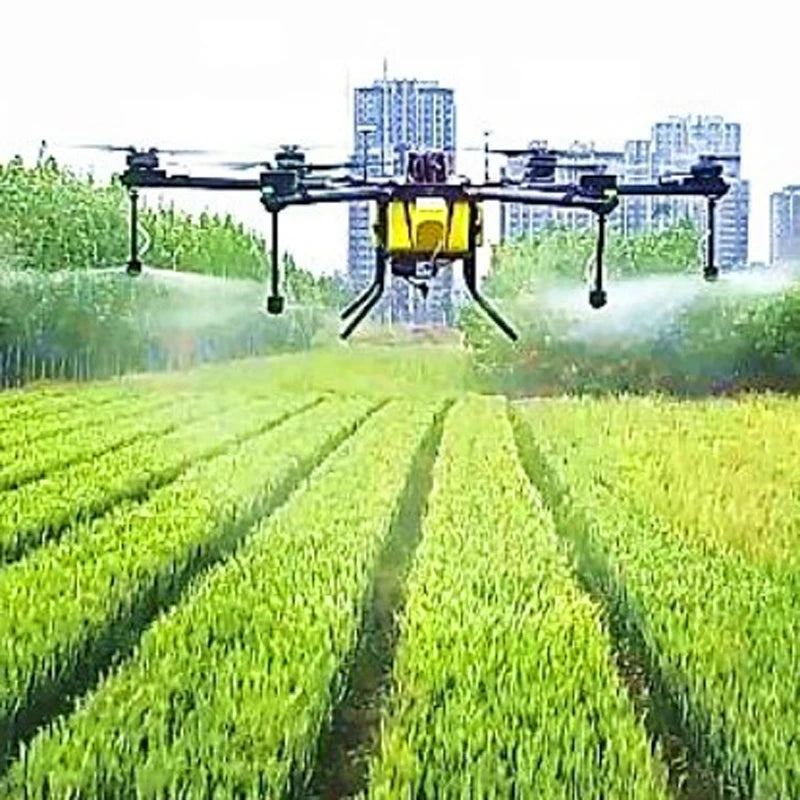

JOYANCE agriculture sprayer drones have been widely used for crop protection, mosquito control, and public disinfection.
Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticides,seed, etc.
Precio habitual
$19,540.00 USD
Precio habitual
$0.00 USD
Precio de oferta
$19,540.00 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Carbon Fiber Frame 6 axis 20kg RC control Agricultural Spraying Drone JT20L-606
Carbon Fiber Frame 6 axis 20kg RC control Agricultural Spraying Drone JT20L-606
Innovaciones Globales
Product Description

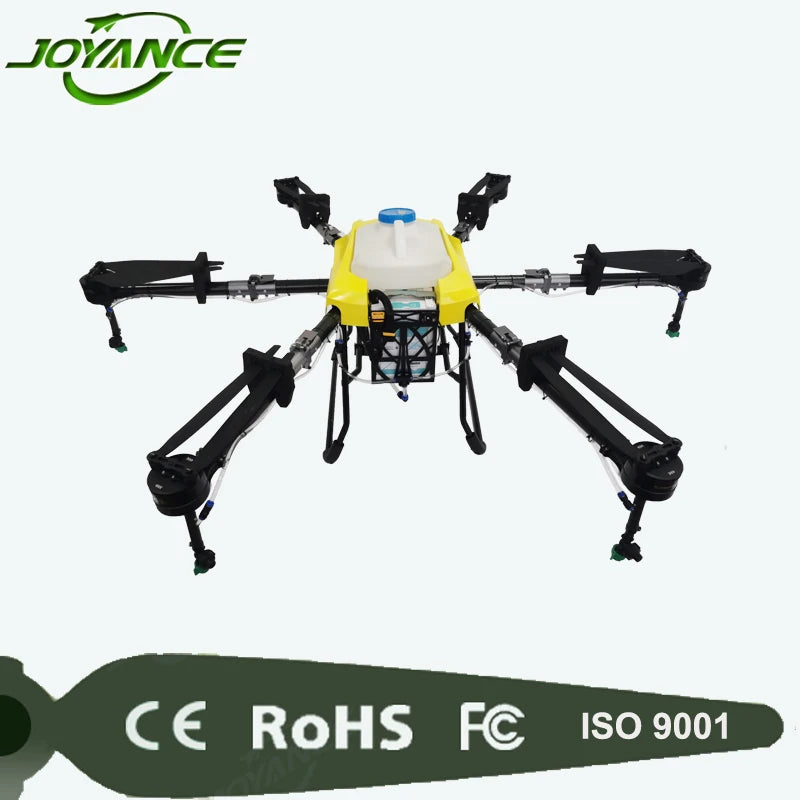

Carbon Fiber Frame 6 axis 20kg RC control Agricultural Spraying Drone JT20L-606
Agriculture Drone Applications.
Specification
|
Item/Model
|
JT10L-606QC
|
JT15L-606
|
JT16L-606QC
|
JT20L-606
|
|
Pesticide load
|
10 Liters
|
15 Liters
|
16 liters
|
20 liters
|
|
Self weight
|
10.5 KG
|
13.5 KG
|
17 kg
|
18.5 kg
|
|
Take-off weight
|
24.5 KG
|
31 KG
|
40 kg
|
44 kg
|
|
Fly time
|
10-15 Min
|
10-15 Min
|
10~15 min
|
10~15 min
|
|
Spray efficiency
|
5-7 Hectares/hour
|
7-8 Hectares/hour
|
8~10 hectares/hour
|
9~11 hectares/hour
|
|
Spray width
|
4-6 m
|
6-7 m
|
6~7 m
|
7~8 m
|
|
Spray speed
|
0~8 m/s
|
0~8 m/s
|
0~8 m/s
|
0~8 m/s
|
|
Nozzle
|
4 high pressure nozzles
|
2 centrifugal nozzles
|
4 High pressure nozzles
|
4 centrifugal nozzles
|
|
Battery
|
2 pcs 6S 17000 mAh
|
2 pcs 6S 17000 mAh
|
1 pc 12S 22000 mAh
|
2 pcs 6S 23000 mAh
|
|
Flying radius
|
1000 m
|
1000 m
|
1000 m
|
1000 m
|
|
Spray flow
|
1~1.5 L/Min
|
2~2.5 L/Min
|
2~ 2.5 L/min
|
2.5~ 3 L/min
|
|
Flying height
|
0~30 M
|
0~30 M
|
0~30 m
|
0~30 m
|
|
Work temperature
|
–10~70 ℃
|
–10~70 ℃
|
–10~70 ℃
|
–10~70 ℃
|
|
Work humidity conditions
|
0-90%
|
0-90%
|
0-90%
|
0-90%
|
|
Wind resistance
|
10 m/s
|
10 m/s
|
10 m/s
|
10 m/s
|
|
Spread size (m)
|
W1.5 *L1.5 * H0.6
|
W1.8 *L1.8 * H0.48
|
1.8 *1.8 * 0.7 m
|
1.95 *1.95 * 0.57 m
|
|
Folded size (m)
|
W0.9 * L0.8 *H0.6
|
W0.7 * L0.7 *H0.63
|
0.95 * 1.05 *0.7 m
|
0.7 * 0.7 *0.8 m
|
|
Package size/
weight
|
100*90*80 cm /
50 kg
|
75*75*81 cm /
70kg
|
120*100*79 cm /
70 kg
|
75*85*95 cm /
80 kg
|
Other Drones
10L JT10L-606QC
Sprayer and Thermal Fogger 2 in 1 drone for pesticide spraying and pest/mosquito control
16L JT16L-606QC
Quick Coupler/Detachable 16L Agriculture Sprayer Drone
15L JT15L-606
Sprayer and Spreader 2 in 1 drone for pesticide spraying and seed/granule fertilizer spreading
Product Feature
Brushless Motor
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Centrifugal nozzle
Droplet diameter of 50~200um
Better atomization effect
Better penetration
Spray more evenly
Not easy to be blocked
Aviation aluminum folding joint
Light and durable
Carbon fiber drone arm with diameter 40mm, thickness 2.0mm
Suitable for heavy duty work
Long service life
Long service life
Carbon fiber propeller
Foldable during transport
FOC integrated power system

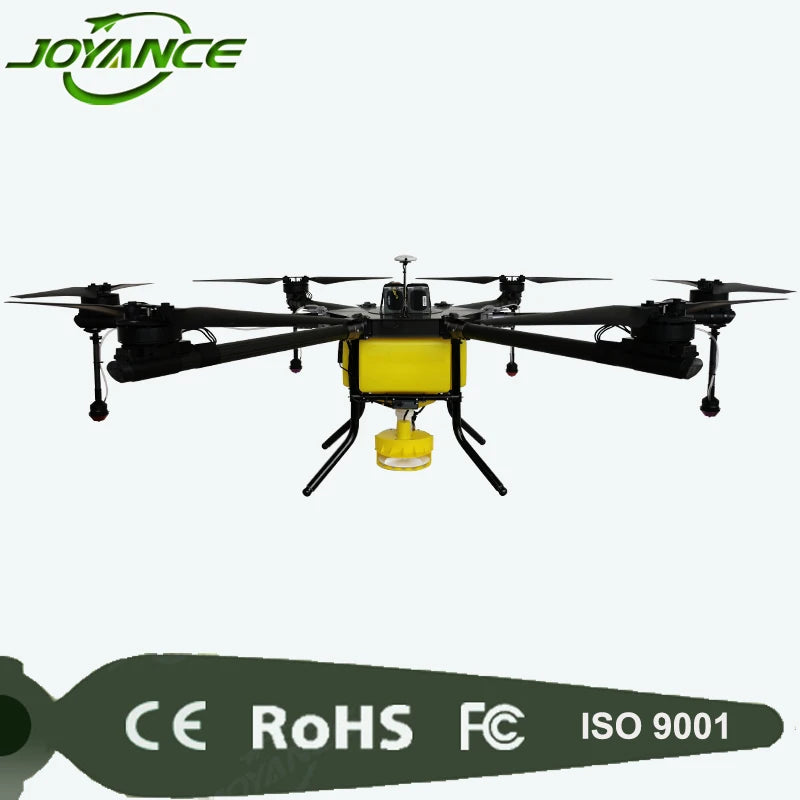

Granular spreader can be installed Spreading seed/solid fertilizer/granule
Carbon fiber main board
Strong and stable
Operation Modes
Manual Operation.
1. GPS Mode
2. Attitude Mode
3. AB Line Mode
It is semi-automatic mode. Just mark A point and B point on the map, the drone will fly automatically.
Autonomous Flight.
App for Android phone or tablet
Google map
Add obstacles
Program flight routes with waypoints
Low voltage warning
Break medicine protection
Intelligent spraying control
Terrain following sensor
