agriculture spraying drone 15kg

Name: agriculture spraying drone 15kg
Brand: Innovaciones Globales
SKU: 196890550011003_262320603
Price: 32052.0 USD
Availability: InStock

Innovaciones Globales

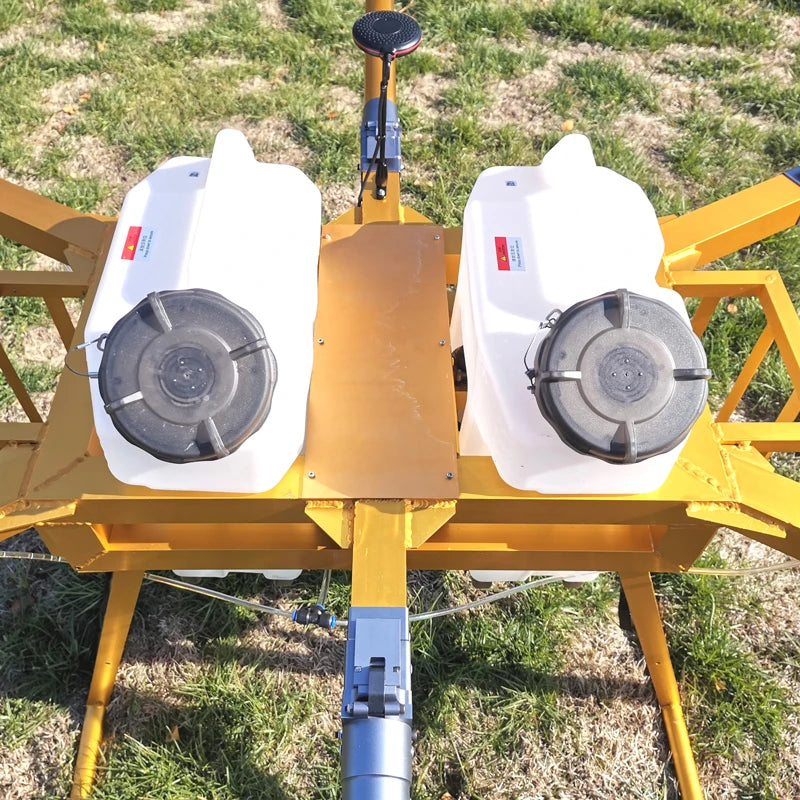

Capacity 32L

Model Number JT32L-606QC

Variantes de producto

Application

agriculture spraying drone 15kg payload agricultural drone canopy drone gas agriculture

JOYANCE drones have been widely using for crop protection, mosquito control, and public disinfection.

Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, banana, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.

Product Parameter

Capacity:	32 liters
Spraying width:	≥ 10m
Spraying efficiency:	≥ 14~16 hectares/hour
Battery:	2pc 16s 16000mAh Li-po battery
Nozzle:	4pcs centrifugal nozzles
Fold size:	1.3 * 0.7 * 0.63 m
Spread size:	2.4 * 1.18* 0.63 m
Charge time	35 minutes full charge 2 batteries
Fly Time	10-15 minutes

1. How long can the battery fly?

2pcs batteries can fly for 10-15 minutes.

2. How long does it take to fully charge the battery?

About 35 minutes to full charge 2 batteries

3. How many batteries are needed for a whole day's continuous spraying?

For continuous spraying, we recommend 12 batteries and 2 chargers

4. Do you provide training?

Yes, we provide 3 days' free training online or in China

Main Parts

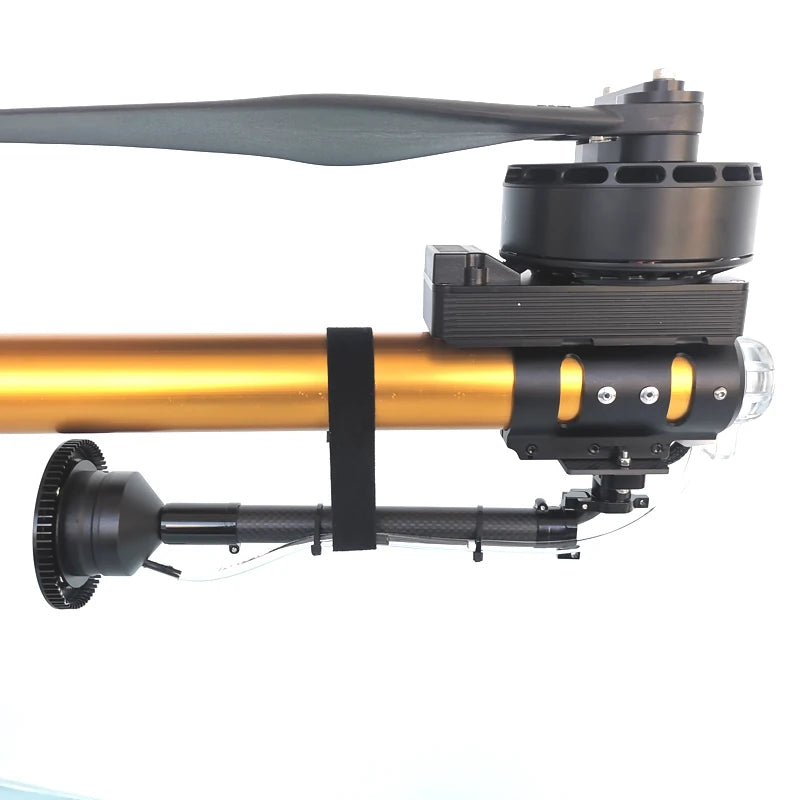

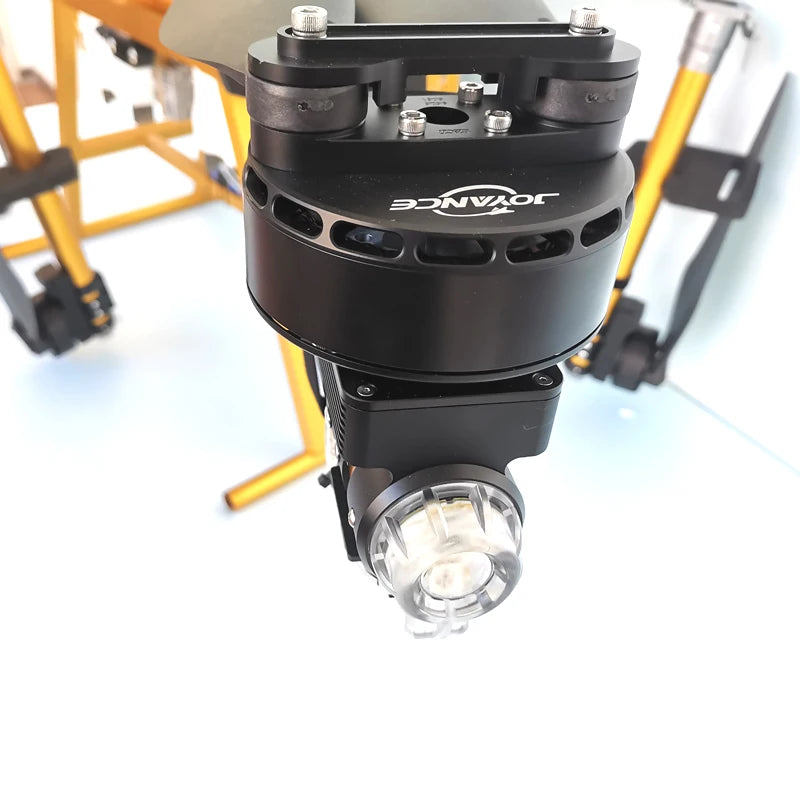

Brushless Motor
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day

Centrifugal Nozzle

Droplet diameter of 50~200um

Better atomization effect

Better penetration

Spray more evenly

Not easy to be blocked

Aviation Aluminum Folding Joint

Firm and durable, not deformed.

Carbon fiber drone arm with diameter 40mm, thickness 2.0mm

Suitable for heavy duty work
Long service life

Carbon Fiber Propeller

Foldable during transport

FOC integrated power system

Nozzles under propeller

Remote Controller

Integrated with Radio telemetry and Image transmitter, FPV camera, 5 inch screen. 1.5km control distance

Aviation Aluminum Alloy Frame

The whole frame is made of aviation aluminum alloy material, strong and durable

Product Feature

1. Autonomous Flight: Mark waypoints on Google map, program flight routes in the App, the drone will fly automatically according to the routes. The flight routes can be saved in the account for next time use.

2. Cloud Service: the spraying datas can be uploaded to cloud service platform with internet connection, and the administrator can monitor all the drones registered in this system in real time.

3. Obstacles Detection: the Millimeter wave radar on the front of drone can detect if there are any obstacles in front and stop drone flying forward to avoid any possible crash.

4. Intelligent Spraying: the spray flow can be automatically adjusted by chemical volume per hectare and fly speed.

5. Break-point Record: When the chemical runs out the drone will record break-point and continue spraying after refill.

6. Terrain Following: the Millimeter wave radar can detect the distance between drone and ground/crop surface and automatically adjust flight height to keep constant distance between drone and crops surface to get even spraying.
