4k 16l 20l 32l 64l agricultural drone sprayer
4k 16l 20l 32l 64l agricultural drone sprayer
Innovaciones Globales
Product Description
Product Details
self-flying
One-click take-off, self-planning edges, with a wide spraying range, and also equipped with RTK wood blocks with centimeter-level high-precision positioning. Save time and worry.
radar, automatic obstacle avoidance
The spherical radar system can sense obstacles and the surrounding environment in all environments, all weathers and all viewing angles, without worrying about the intrusion of dust and light. When flying autonomously, it can identify horizontal obstacles and predict and automatically avoid obstacles in advance. The drone automatically maintains the relative altitude to the ground and can automatically adjust the altitude to make the flight safer.

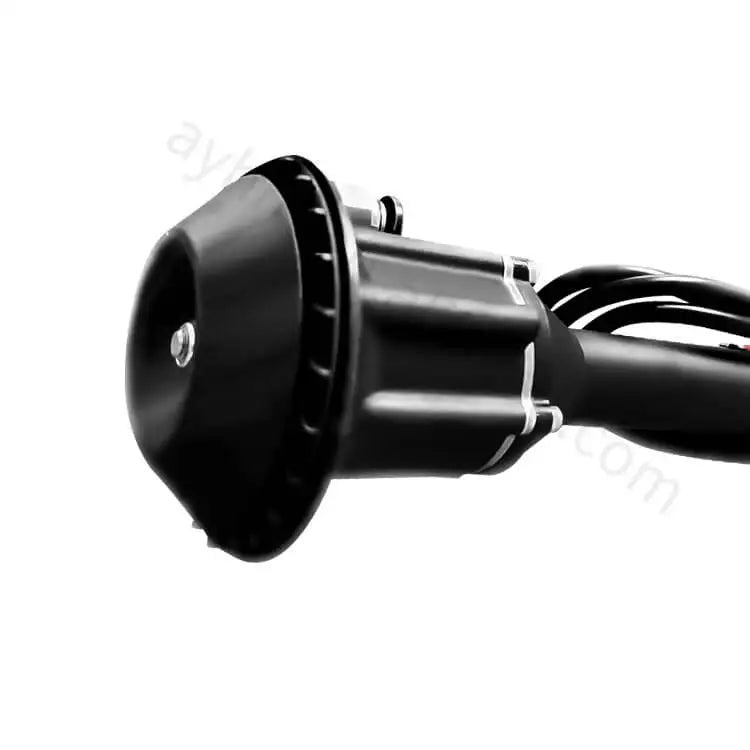

Centrifugal nozzle
The atomization is uniform, the pressure is low, and the impact intensity on crops is small. Mostly used for sprinkler irrigation of grassland, nursery, flowers, etc.
Sprayer and Spreader 2 in 1
It can spread solid fertilizer, granular fertilizer, seeds, feed, etc. 2-in-1 sprayer and spreader for massive cost savings
The plant protection APP can intelligently plan the operation route by only setting point A and point B for irregular terrain. Completely independent work, improve work efficiency. With path memory function, it can calculate the spraying area, and it can also provide continuous injection and low battery protection
Dual 4k pixel high-resolution cameras, dual FPV cameras, real-time monitoring, all-round accurate obstacle avoidance.
Spray system ccms
CCMS spray system; 20-250 micron droplet width adjustment, spray width up to 6-8m, efficiency 60-300mu/hour, using small volume technology, better atomization penetration effect.
Twist-button folding method, the body can be quickly folded in 5 seconds; the protective net protects the body from wear and tear.
IP67 waterproof, dustproof and waterproof, easy to clean, not afraid of liquid corroding the body, using an integrated waterproof design, support for washing.

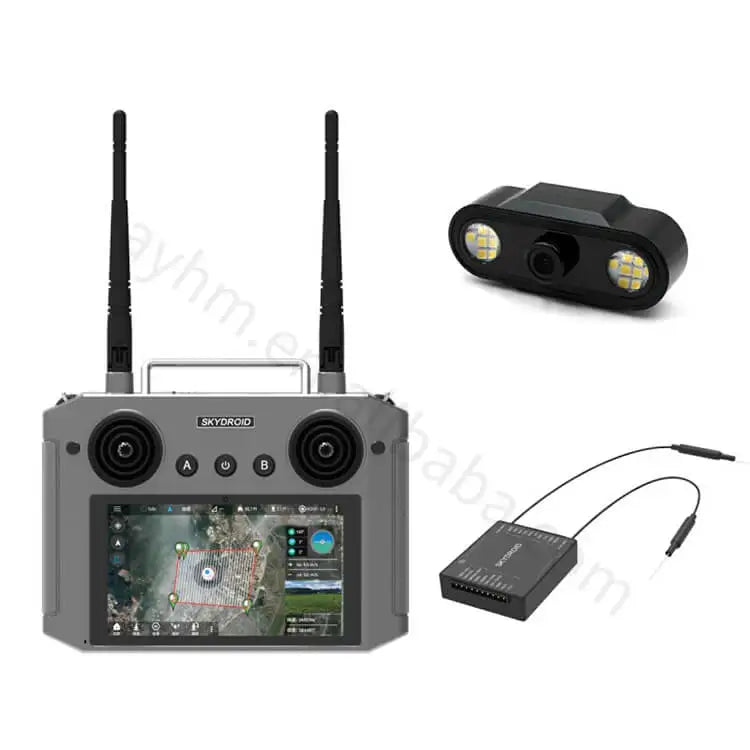

H12 high-definition remote control with screen, intelligent route planning, install APP instead of mobile phone, clearer image, longer distance, battery life of 6~20 hours
Smart batteries, they have an internal smart voltage management system. Equipped with an intelligent charging system, the operation is simpler; the battery is 2000 mah, with a long life, 1000 cycles, and the intelligent battery can display the battery level and automatically balance the difference between the batteries. Fast charging in 18 minutes.
The drone sprayer is equipped with RTK system to achieve high-precision flight. Safe operation at night, even if the satellite signal is lost, it can safely return to the origin without any network
Application Scenario
Can be applied to fruit trees, wheat, tea fields, cotton, rice, corn, etc.
Product Paramenters
|

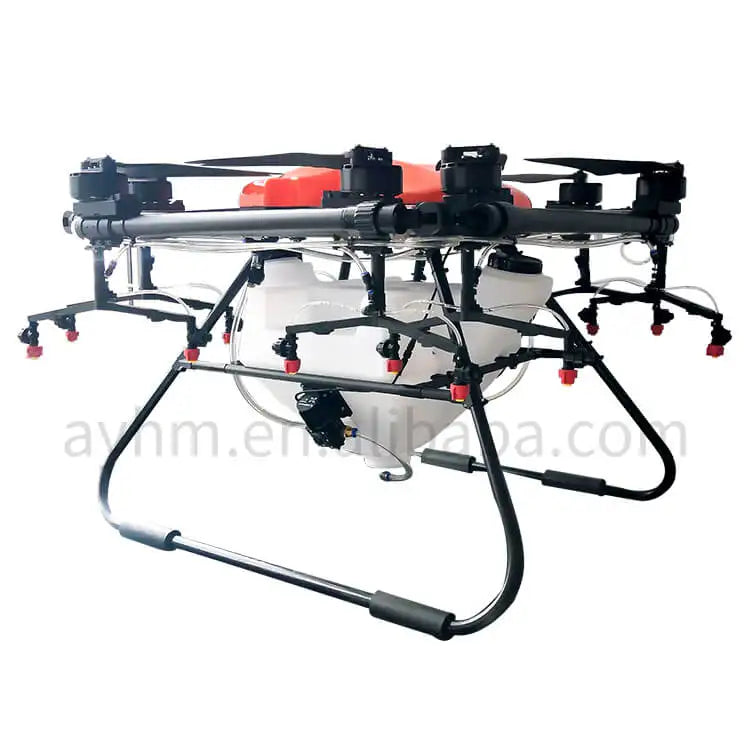

HM-3WWDZF6-30B Drone Sprayer
|
||||||
|
Model
|
HM-3WWDZF6-30B
|
Product name
|
Plant protection drone
|
|||
|
Folded size
|
1200*600*800mm
|
Product wheelbase
|
2000mm
|
|||
|
Empty weight
|
21kg
|
Load capacity
|
30L
|
|||
|
Standard takeoff weight
|
65kg
|
Maximum takeoff weight
|
130kg
|
|||
|
No-load usage time
|
30min
|
Full load usage time
|
20min
|
|||
|
Spray time
|
2-5min (adjustable)
|
Spraying efficiency
|
0.8-15L/min (can be set)
|
|||
|
Working speed
|
0-10m/s
|
Movement (S) flight speed
|
0-15m/s
|
|||
|
Spray width
|
8-12m
|
Spray type
|
Pressure sprinkler
|
|||
|
Battery capacity
|
27000MAH
|
Charging time
|
18min
|
|||
|
Motor model
|
10015
|
Propeller Model
|
36135
|
|||
|
Motor KV
|
110
|
Maximum pulling force
|
50kg
|
|||
|
Operating Voltage
|
58.8V
|
Working current
|
0-100A
|
|||
|
Wind resistance
|
Level 8
|
Operating temperature
|
0-45℃
|
|||
|
Medicine chest capacity
|
30L
|
Remote control distance
|
Radius 3000m
|
|||
|
Transmission frequency
|
2.4G
|
Control System
|
Mobile APP or ipad
|
|||
|
Maximum flight altitude
|
2000m
|
Adapt to the altitude
|
6000m
|
|||
